The Best
Elevators
The history will record that the first ever Sri Lankan owned brand "Vectra" elevator was installed in year 2005 by a group of engineers who dared to step in to this unique industry.

Today, we are happy and proud to have installed Vectra lift at Sri Dalada Maligawa as a tribute to the nation and fervently wish this will bring blessings to all our customers and the people of Sri Lanka.
Standard Lift Dimension

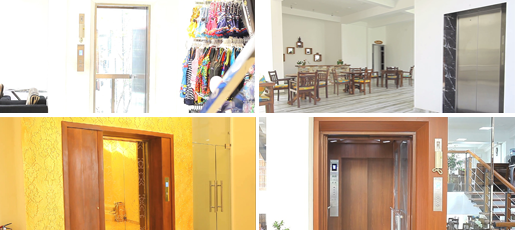

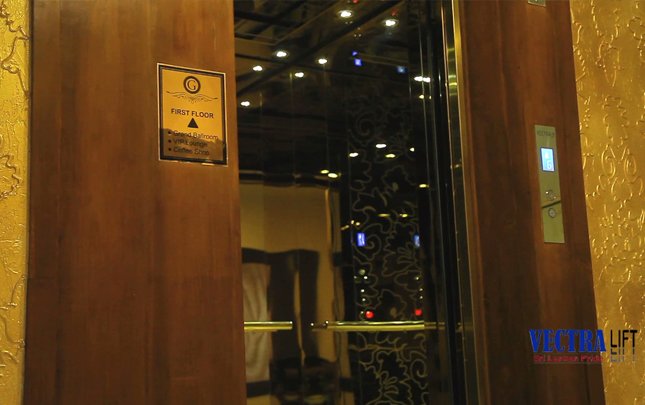

Passanger Elevators
Type P450 P600 P800 P1000
LOAD kg 450 600 800 1000
SPEED m/s 1 1 1 1
OH mm 4200 4200 4200
PIT mm 1500 1500 1500
CAR INTERNAL SIZE mm
CAR WIDTH 1100 1400 1500
CAR DEPTH 1400 1400 1500
HOISTWAY SIZE mm
WIDTH 1600 2000 2300
DEPTH 1800 2000 2300
ENTRANCE WIDTH mm 800 900 1000
Standard Lift Dimension

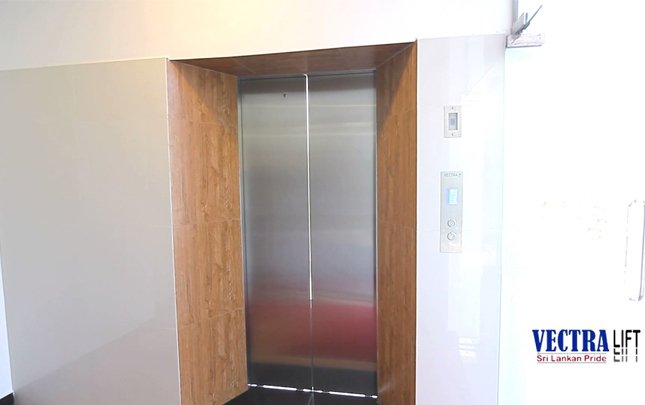

Bed Elevators
Type B750 B1000
LOAD kg 750 600
SPEED m/s 0.5 / 1.0 0.5/1.0
OH mm 4450 4500
PIT mm 1500 1500
CAR INTERNAL SIZE mm
CAR WIDTH 1300 1400
CAR DEPTH 2300 2300
HOISTWAY SIZE mm
WIDTH 2050 1100
DEPTH 2900 1800
ENTRANCE WIDTH mm 1100 1100
Standard Lift Dimension

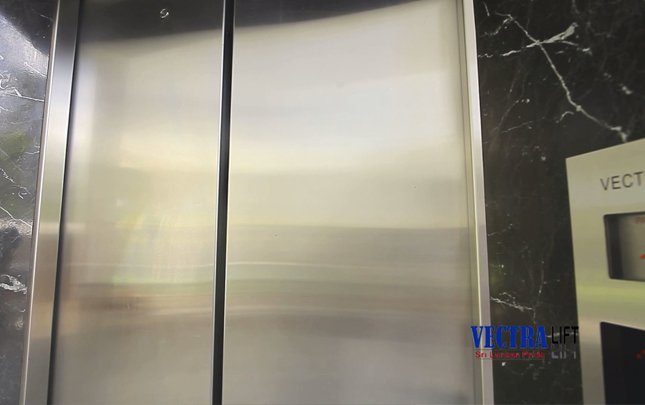

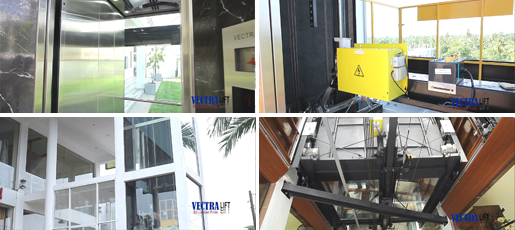

Cargo Elevators
Type C750 C1000
LOAD kg 750 600
SPEED m/s 0.5 / 1.0 0.5/1.0
OH mm 4450 4500
PIT mm 1500 1500
CAR INTERNAL SIZE mm
CAR WIDTH 1300 1400
CAR DEPTH 2300 2300
HOISTWAY SIZE mm
WIDTH 2050 1100
DEPTH 2900 1800
ENTRANCE WIDTH mm 1100 1100

Cabin Types

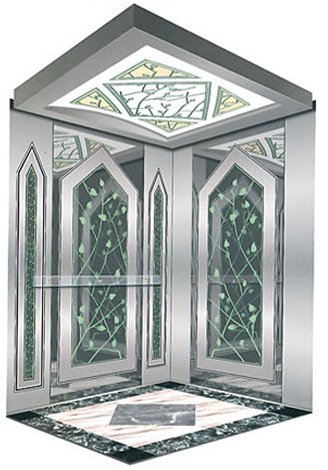

PSM-03-1

Car Top Middle with image roof, Mirror stainless steel framework
Side Panel & Back Panel - Centre Panel Mirror finish, Etching finish, Hairline finish, Concave in green
Side Panel & Back Panel - Auxiliary Panel Mirror finish, Etching finish, Hairline finish, Concave in green
Handrail Handrail for transparent organic composite board with golden trunk-nail
Car Bottom Pvc floor 2 thickness

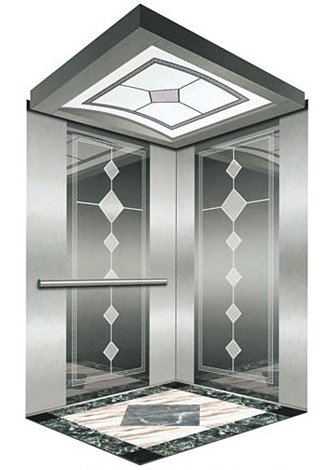

PSM-04-7

Car Top Wide roof of white organic board for soft illumination design
Side Panel & Back Panel - Centre Panel Mirror finish, Etching finish, Hairline finish
Side Panel & Back Panel - Auxiliary Panel Hairline finish
Handrail Hairline stainless steel tube
Car Bottom Pvc floor 2 thickness

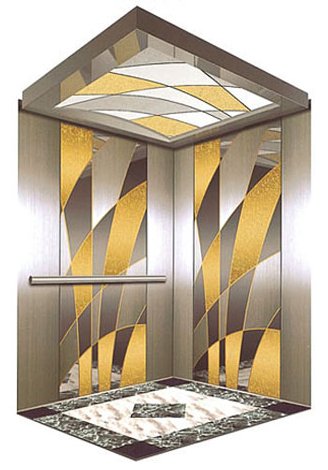

PSM-05-6

Car Top Wide roof of white organic board for soft illumination design
Side Panel & Back Panel - Centre Panel Mirror finish, Etching finish, T-plated
Side Panel & Back Panel - Auxiliary Panel Hairline finish
Handrail Stainless steel tube
Car Bottom Pvc floor 2 thickness

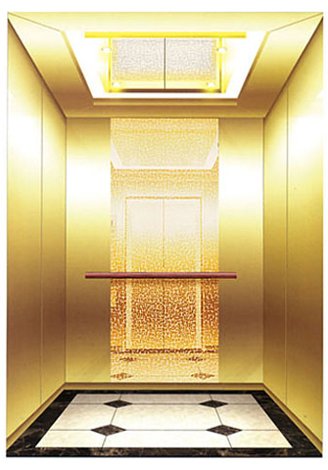

PSM-06-A

Car Top T-plated hairline stainless steel framework, T-plated mirror acrylic roof
Side Panel & Back Panel - Centre Panel T-plated Mirror finish, Etching finish
Side Panel & Back Panel - Auxiliary Panel T-plated Hairline finish
Handrail Wooden handrail
Car Bottom Pvc floor 2 thickness

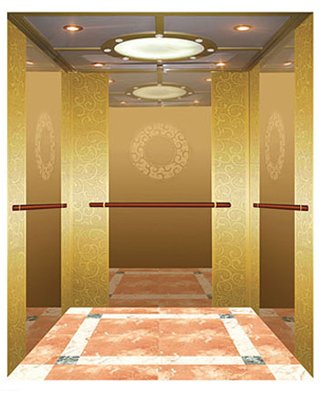

PSM-102

Car Top Powder painted with lamp
Side Panel & Back Panel - Centre Panel Mirror finish, Etching finish, Hairline finish, T-plated
Side Panel & Back Panel - Auxiliary Panel Mirror finish, Etching finish, Hairline finish, T-plated
Handrail Wooden handrail
Car Bottom Pvc floor 2 thickness

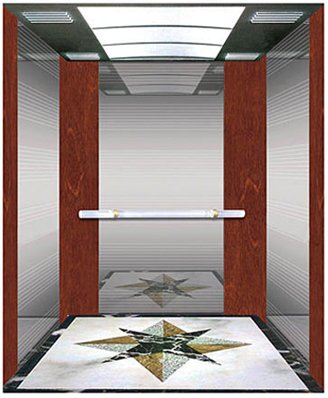

PSM-109

Car Top Mirror stainless steel framework, Organic roof and lamp
Side Panel & Back Panel - Centre Panel Mirror finish, Etching finish
Side Panel & Back Panel - Auxiliary Panel Wooden board
Handrail Tube for transparent acrylic plate
Car Bottom Pvc floor 2 thickness

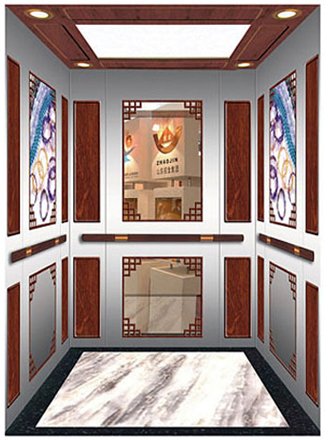

PSM-115

Car Top Acrylic board for imitation redwood with lamp
Side Panel & Back Panel Vibration stainless steel with wood frame and mirror
Handrail Wooden handrail
Car Bottom Pvc floor 2 thickness

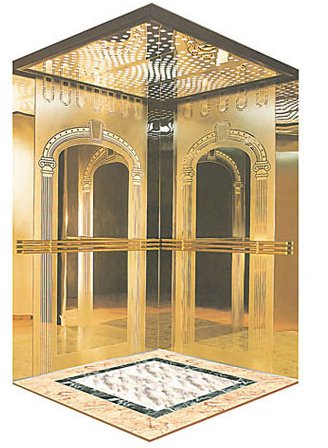

PSM-982

Car Top Mirror stainless steel hollowed-hole with white transparent board, aluminium framework
Side Panel & Back Panel T-Plated
Handrail Three tube for T-plated
Car Bottom Pvc floor 2 thickness

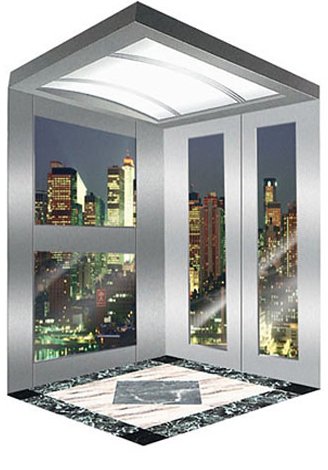

PSM-2005-B1

Car Top Wide roof of white organic board for soft illumination design
Side Panel & Back Panel - Centre Panel Mirror finish (Hairline finish), Laminated glass
Side Panel & Back Panel - Auxiliary Panel Mirror finish (Hairline finish), Laminated glass
Handrail Hairline stainless steel tube
Car Bottom Pvc floor 2 thickness

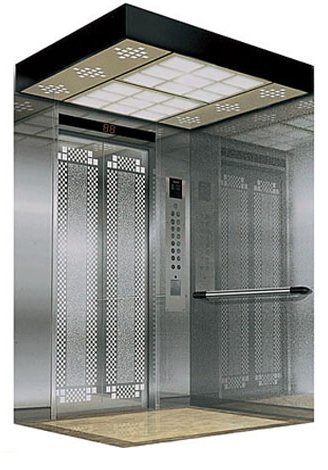

PSM-2006-B

Car Top Acrylic hollow column for soft illumination design
Side Panel & Back Panel - Centre Panel Mirror finish
Side Panel & Back Panel - Auxiliary Panel Mirror finish, Etching finish
Handrail Stainless steel handrail
Car Bottom Pvc floor 2 thickness

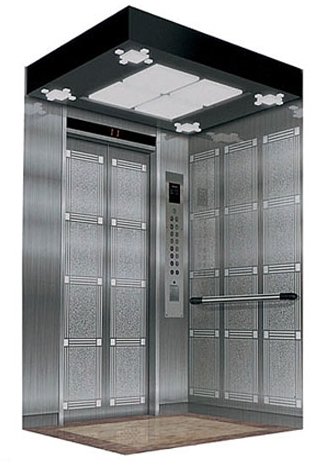

PSM-2006-C

Car Top Acrylic hollow column for soft illumination design
Side Panel & Back Panel - Centre Panel Hairline finish, Etching finish
Side Panel & Back Panel - Auxiliary Panel Hairline finish, Etching finish
Handrail Stainless steel handrail
Car Bottom Pvc floor 2 thickness

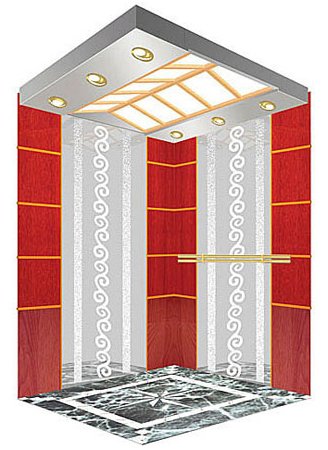

PSM-2008-J9

Car Top Triangle roof of white organic board for wooden pattern in the middle, hairline stainless steel framework with lamp
Side Panel & Back Panel - Centre Panel Mirror finish, Etching finish
Side Panel & Back Panel - Auxiliary Panel Wooden board with T-plated stria
Handrail Double tube with stainless steel and T-plated
Car Bottom Pvc floor 2 thickness

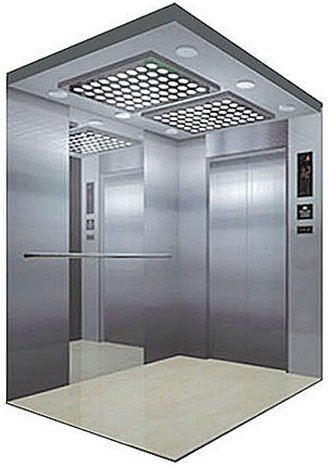

PSM-N14

Car Top Mirror stainless steel framework, multilevel light omitting plate
Side Panel & Back Panel - Centre Panel Mirror finish
Side Panel & Back Panel - Auxiliary Panel Hairline finish
Handrail Hairline stainless steel tube
Car Bottom Pvc floor 2 thickness

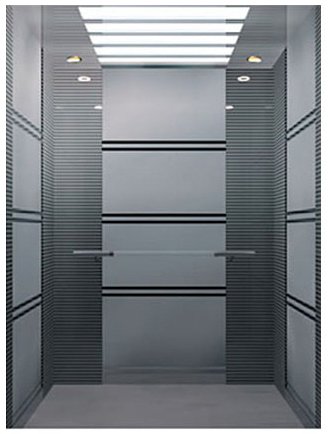

PSM-N19

Car Top Mirror stainless steel framework, organic roof and lamp
Side Panel & Back Panel - Centre Panel Mirror finish, Etching finish, Vibration finish
Side Panel & Back Panel - Auxiliary Panel Mirror finish, Etching finish
Handrail Tube for mirror stainless steel and transparent acrylic plate
Car Bottom Pvc floor 2 thickness

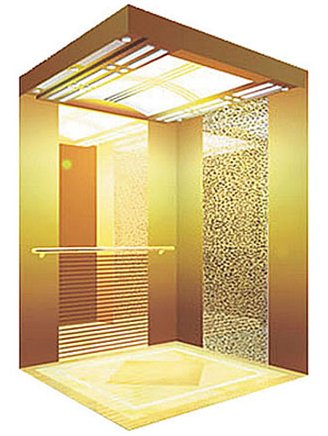

PSM-N25

Car Top Mirror stainless steel framework, organic roof and lamp
Side Panel & Back Panel - Centre Panel Mirror finish, Etching finish, T-plated
Side Panel & Back Panel - Auxiliary Panel T-plated, Hairline finish
Handrail Hairline stainless steel tube for T-plated
Car Bottom Pvc floor 2 thickness
